💧Membrane-Based WFI Generation
-
A modern, increasingly preferred method for generating Water-for-Injection (WFI), the highest purity water used in pharmaceutical manufacturing.
-
Membrane-based systems achieve WFI quality through a multi-barrier approach that combines various filtration and purification technologies in a sequenced process.
-
Serves as a robust alternative to the traditional, energy-intensive process of distillation.
| Purification Stage | Technology Used | Primary Function |
|---|---|---|
| Pretreatment | Softening, Carbon Filtration, UV | Removes chlorine, hardness, and particulates to protect the membranes. |
| Bulk Removal | Reverse Osmosis (RO) | The core step. It removes the bulk of dissolved salts, organics, microbes, and endotoxins. Double-pass RO is standard for redundancy. |
| Polishing | Electrodeionization (EDI) or CEDI | Continuously polishes the water to meet final conductivity limits without requiring chemical regeneration. |
| Final Guard | Ultrafiltration (UF) | The final, critical barrier to ensure endotoxin removal (pyrogen removal) to meet the WFI standard. |
✅Regulatory Compliance
-
The United States Pharmacopeia (USP) and Japanese Pharmacopeia (JP) have long permitted WFI production by methods equivalent or superior to distillation, including membrane systems.
-
The European Pharmacopoeia (Ph. Eur.) historically mandated distillation for the generation of WFI. This has now changed with the revision of its WFI Monograph (0169) in 2017. Reverse Osmosis (RO) coupled with other suitable techniques (like Ultrafiltration) is now an accepted alternative.
-
The ultmate result is achievement of the stringent WFI quality specifications (low ions, very low Total Organic Carbon (TOC), and extremely low microbial/endotoxin levels), regardless of the method used.
⚡ Key Advantages Over Distillation
The shift from distillation (which requires a phase change via boiling/condensation) to ambient or “cold” membrane systems offers compelling benefits:
-
Energy Efficiency: Membrane systems are significantly more energy efficient as they eliminate the need for high-pressure steam to boil water. This reduces utility costs (typically lower lifecycle cost) and the carbon footprint.
-
Reduced Footprint: The equipment is typically skidded and more compact than large, multi-effect stills.
-
Ambient Production: WFI can be produced at ambient temperatures. This eliminates the energy needed for constant hot storage (if a continuous ozone/UV sanitization system is used) and reduces the time needed for cooling before use.
-
Capital Savings: Eliminating the need for large boilers (steam source) and large distillation units can lead to significant reductions in capital expenditure for new facilities.
⚠️ Primary Risk and Mitigation (Biofilm Control)

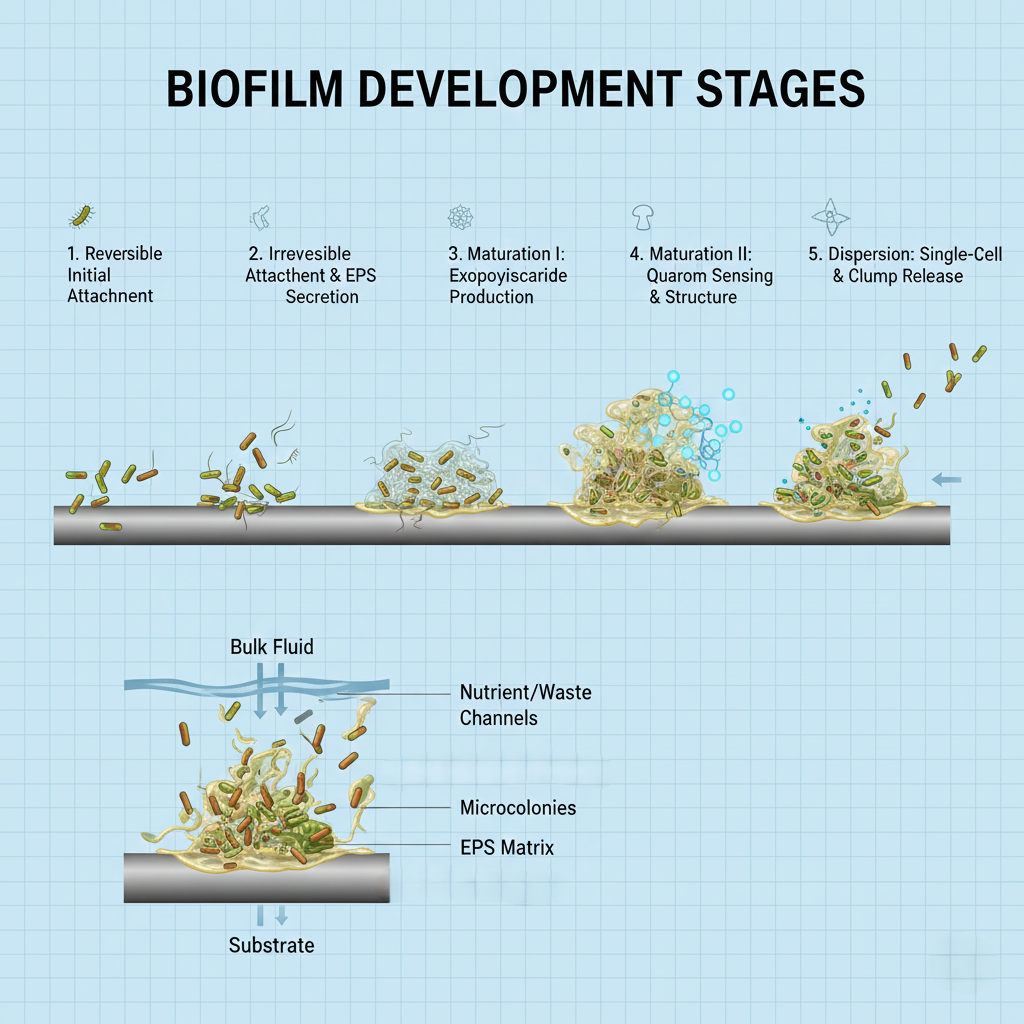

The main regulatory concern historically associated with membrane systems is the potential for biofilm formation on the RO membrane surfaces since they typically operate at ambient temperatures, unlike distillation which is inherently self-sanitizing due to high heat.
Mitigation Strategy (Sanitization):
-
Hot Water Sanitization:
The preferred method involves designing the system to withstand and utilize electric heating to periodically circulate WFI at high temperatures (≥80∘C) to kill bacteria and control biofilm.
-
Ozonation:
Continuous or intermittent ozone injection into the WFI storage tank and distribution loop is often used as a highly effective chemical-free sanitizer, with UV light used downstream for ozone destruction before the water is used in the process.
